- Application

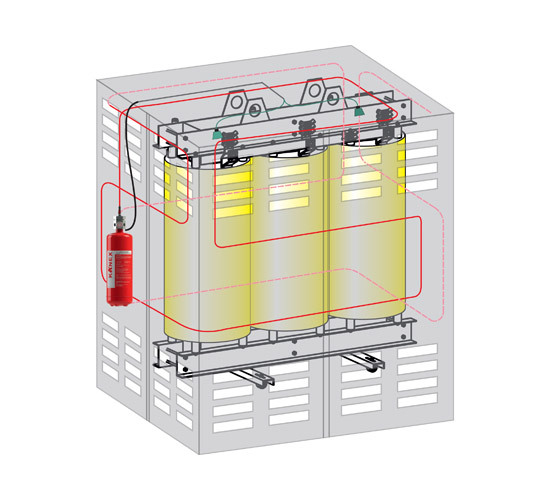

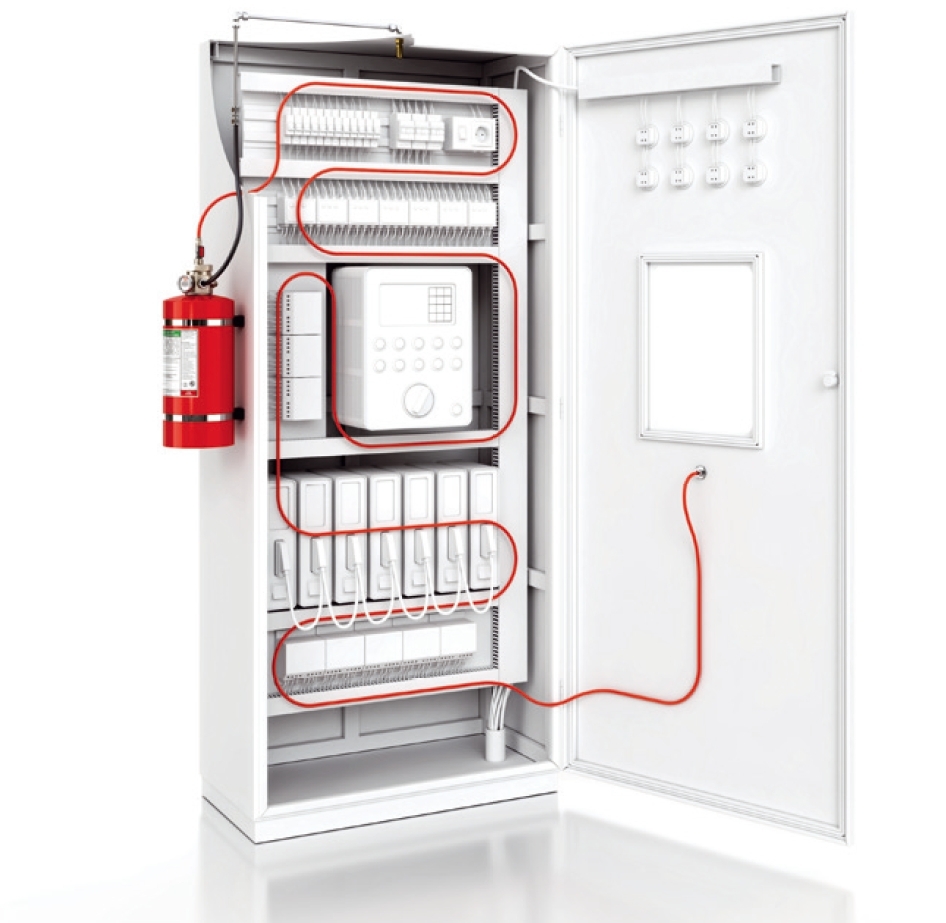

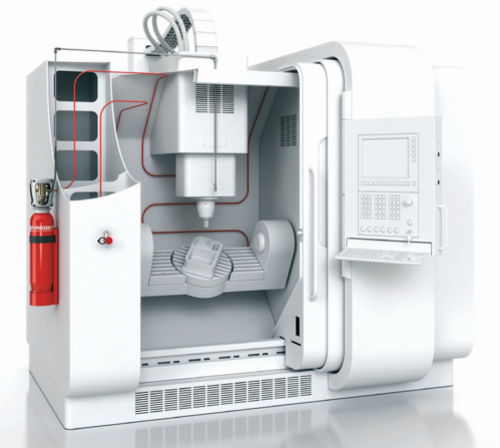

- Applications Electrical & Control Panels MCCs, PCCs, VCBs, LT/HT panels Server Racks & Data Cabinets IT & telecom enclosures CNC & Precision Machines Milling, grinding, EDM, and cutting machines Commercial Kitchens Kitchen hoods, fryers, and ducting Vehicles & Mobile Equipment Mining equipment, buses, trucks, excavators Generators & Transformers Enclosed power equipment fire protection ATM, UPS, & Battery Racks Compact enclosures with high fire risk
- Coating Type
- Powder Coating (Epoxy-Polyester Hybrid)
- Connectivity Type
- Direct Release Connectivity
- Coverage Area
- 10 Square Meter (m2)
- Diameter
- 6 Millimeter (mm)
- Dimension (L*W*H)
- 0.4x.25x.22 Meter (m)
- Energy Efficiency Rating
- No Power Consumption
- Features
- Automatic & Self-Activated Detects fire through a heat-sensitive polymer tube, no electricity required. Direct Fire Detection Tube ruptures at the hottest spot, ensuring suppression exactly at the fire source. Fast Response Immediate discharge minimizes damage and downtime. Compact & Space-Saving Easy to fit inside small enclosures or equipment. Clean & Residue-Free When using clean agents (Novec 1230, FM-200, FK-5-1-12). Flexible Design Available in Direct and Indirect release types for different enclosure sizes. Low Maintenance Simple construction, minimal servicing requirements. Versatile Applications Suitable for panels, server racks, CNC machines, vehicles, kitchens, and more. Safe Operation Certified agents, pressure-tested tube, and reliable discharge system. Cost-Effective Eliminates the need for complex piping and room sealing.
- Fire Extinguisher Type
- Clean Agent (Gas Based)
- Input Power
- 230 Volt-Ampere (VA)
- Installation Type
- Panel / Enclosure Mounted (Internal Installation), Machine Mounted (Internal Equipment Protection), Vehicle / Mobile Equipment Mounted
- Product Type
- Direct Release System (DRS)
- Temperature Range
- 100-120 Celsius (oC)
- Usage
- Automatic fire protection
- Working Temperature
- 100-120 Celsius (oC)
Tube-Based Fire Suppression System
Type: Pre-engineered automatic fire detection & suppression system
Detection Method: Heat-sensitive polymer tube (pressurized)
Suppression Agents: Clean Agent (FK-5-1-12, Novec 1230, FM-200) / CO
Activation: Tube ruptures at fire point (direct release) or via valve (indirect release)
Operating Pressure: 12ï25 bar (depending on agent & design)
Discharge: Automatic, localized, at point of fire origin
Applications: Electrical panels, CNC machines, vehicles, server racks, kitchens
Certifications: UL/FM/VdS/EN standards (as applicable)
Key Features: Automatic, compact, residue-free, no power required
