CNC Machine fire suppression system

Name: CNC Machine fire suppression system
Brand: FIRE ENGINEERING TECHNOLOGY
Price: 85000.0 INR
Availability: InStock

Price 85000.0 INR/ Set

Get a Price/Quote

MOQ : 1 Set

CNC Machine fire suppression system Specification

Input Power
230 Volt-Ampere (VA)

Alarm
100 DB

Features
Automatic fire safety

Temperature Range
100-120 Celsius (oC)

Technology
ILP

Shape
cylinderical

Control Type
Mechanical

Energy Efficiency Rating
5 star

Usage
Applications CNC Machine Fire Suppression System CNC Machining Centers Multi-axis machining units with high spindle speeds CNC Turning & Lathe Machines Fire protection against oil mist & tool overheating Milling Machines Spark and coolant fire suppression Grinding Machines Fine metal dust and spark hazard protection EDM (Electrical Discharge Machines) Fire risk from dielectric oils Injection Molding Machines Protection from hydraulic oil and heater fires Robotic & Automated Manufacturing Cells Localized machine-level fire safety

Fire Class
A,B & C

Warranty
12 month

Product Type
DLP & ILP

Installation Type
On site

Coating Type
crome

Material
SS

Mounting Type
wall/ panel

Coverage Area
12 Square Meter (m2)

Fire Extinguisher Type
Automatic clean agent suppression

Dimension (L*W*H)
0.5 x 0.3 x 0.25 Meter (m)

Working Temperature
100-120 Celsius (oC)

Voltage
230 Volt (v)

Frequency
50 Hertz (HZ)

Color
Red

Weight
18 Kilograms (kg)

Connectivity Type
Thread type

Operating Pressure
15 Bar

Application
Applications CNC Machine Fire Suppression System CNC Machining Centers Multi-axis machining units with high spindle speeds CNC Turning & Lathe Machines Fire protection against oil mist & tool overheating Milling Machines Spark and coolant fire suppression Grinding Machines Fine metal dust and spark hazard protection EDM (Electrical Discharge Machines) Fire risk from dielectric oils Injection Molding Machines Protection from hydraulic oil and heater fires Robotic & Automated Manufacturing Cells Localized machine-level fire safety

Max Flow Rate
Direct-release tube systems (tube ruptures & discharges through the hole): Typical peak mass flow 0.3 1.0 kg/s (per rupture point). Reason: small rupture hole ( 2 4 mm), lower effective orifice area and agent pressure (clean agents are often stored at 25 bar; CO is ~55 bar so CO can be toward the top end). Indirect-release systems (tube triggers valve discharge through nozzles): Typical peak mass flow 1.0 6.0 kg/s (system peak from cylinder/nozzle manifold). Reason: discharge through dedicated nozzles and larger orifice areas; multiple cylinders or large cylinders produce higher peaks.

Capacity
9 Kg

Diameter
Cylinder Diameter (varies with capacity) 2 kg Cylinder: ~100 120 mm 4 6 kg Cylinder: ~140 160 mm 9 12 kg Cylinder: ~160 180 mm 20 kg Cylinder: ~200 220 mm Millimeter (mm)

Pressure
30 Bar

CNC Machine fire suppression system Trade Information

Minimum Order Quantity
1 Set

FOB Port
Delhi

Payment Terms
Others

Supply Ability
100 Sets Per Month

Delivery Time
3 Week

Sample Available
No

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
Standard Kit Contents 1 9 kg agent cylinder (pre-filled, pressure tested) 1 cylinder valve with pressure gauge and safety cap 1 detection tube (typically 8 mm OD) length as per order (commonly 10 15 m) coiled and tied 1 mounting bracket set (cylinder & tube clamps) 1 2 discharge nozzles (for indirect systems) or end fittings (for direct systems) 1 accessories bag (fittings, O-rings, connectors, screws) 1 installation & user manual (folded) 1 certificate folder (test certificate / hydro date / compliance documents)

Main Domestic Market
Goa, Jharkhand, Himachal Pradesh, All India, South India, Central India, West India, North India, East India, Gujarat, Karnataka, Kerala, Lakshadweep, Mizoram, Meghalaya, Manipur, Andhra Pradesh, Bihar, Chandigarh, Daman and Diu, Odisha, Punjab, Assam, Delhi, Dadra and Nagar Haveli, Andaman and Nicobar Islands, Arunachal Pradesh, Chhattisgarh, Haryana, Jammu and Kashmir, Madhya Pradesh, Maharashtra, Nagaland, Rajasthan, Sikkim, Tamil Nadu, Telangana, Tripura, Pondicherry, Uttar Pradesh, Uttarakhand, West Bengal

Certifications
UL/ CE

About CNC Machine fire suppression system

CNC Machine Fire Suppression System

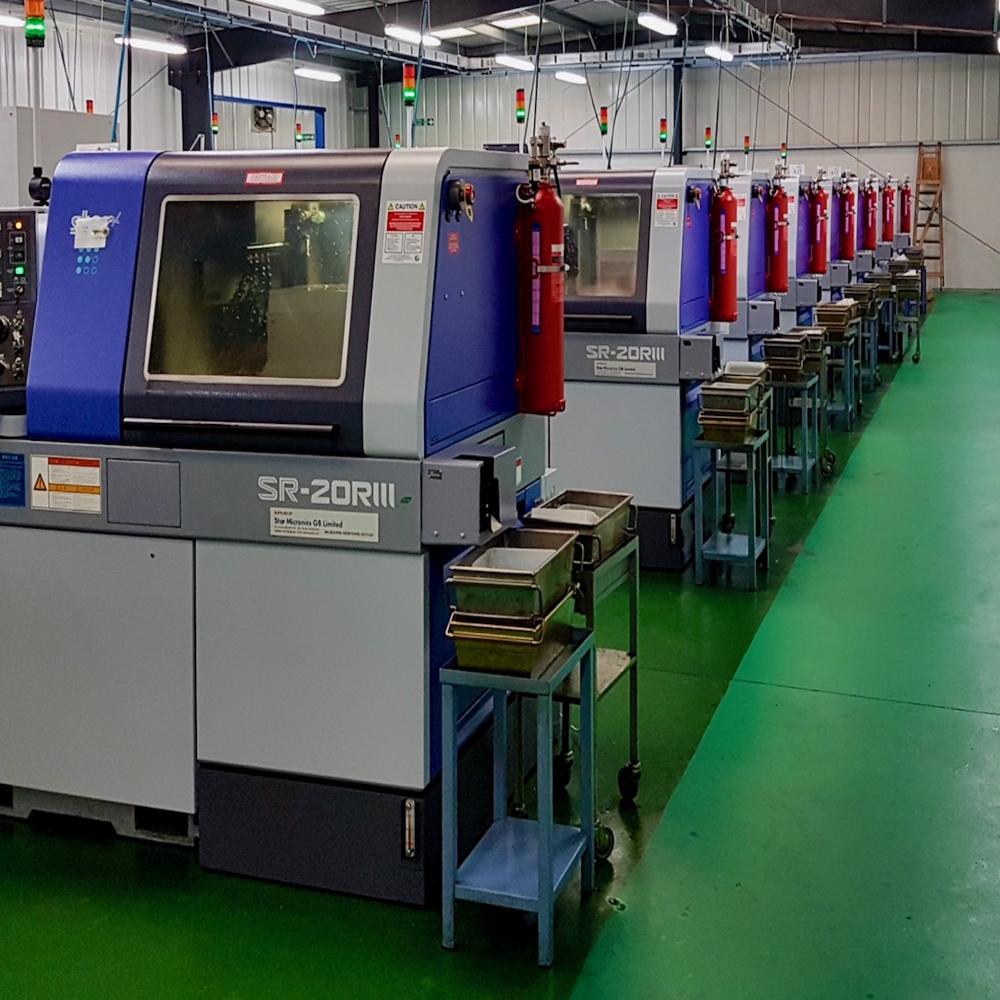

A CNC Machine Fire Suppression System is a pre-engineered, automatic fire protection solution designed to safeguard CNC machining centers, lathes, milling machines, and other precision equipment from fire hazards caused by coolant oils, hydraulic fluids, sparks, and overheating.

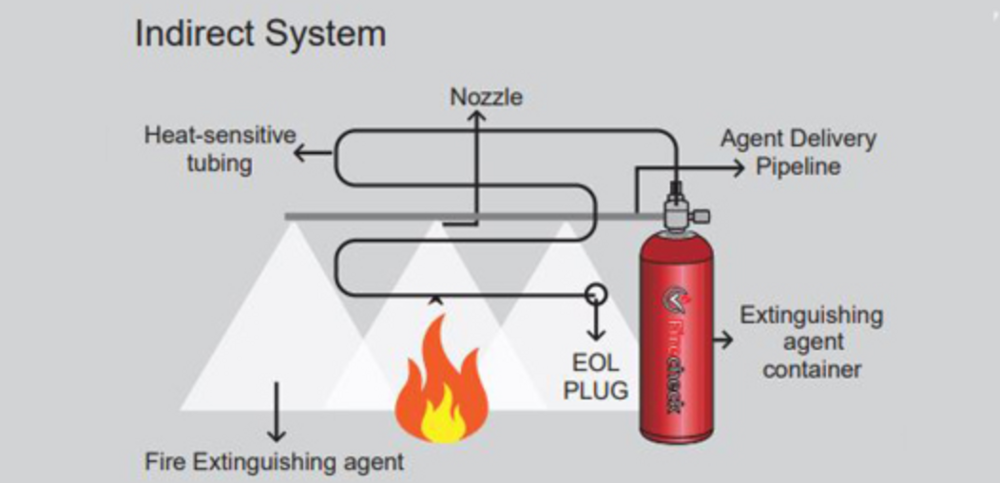

The system uses a flexible, heat-sensitive polymer detection tube routed inside the CNC enclosure. When exposed to abnormal heat or flame, the tube ruptures at the hottest point, releasing the extinguishing agent directly onto the fire. In indirect systems, the tube activates a valve, and the agent is discharged through nozzles for complete coverage.

This ensures instant suppression at the source, preventing fire spread, machine damage, production downtime, and costly business losses.

Key Features

Automatic & Self-Activating No power supply required.
Fast Detection & Suppression Immediate action at the fire source.
Suitable Agents: Clean Agent (FK-5-1-12, Novec 1230, FM-200) or CO.

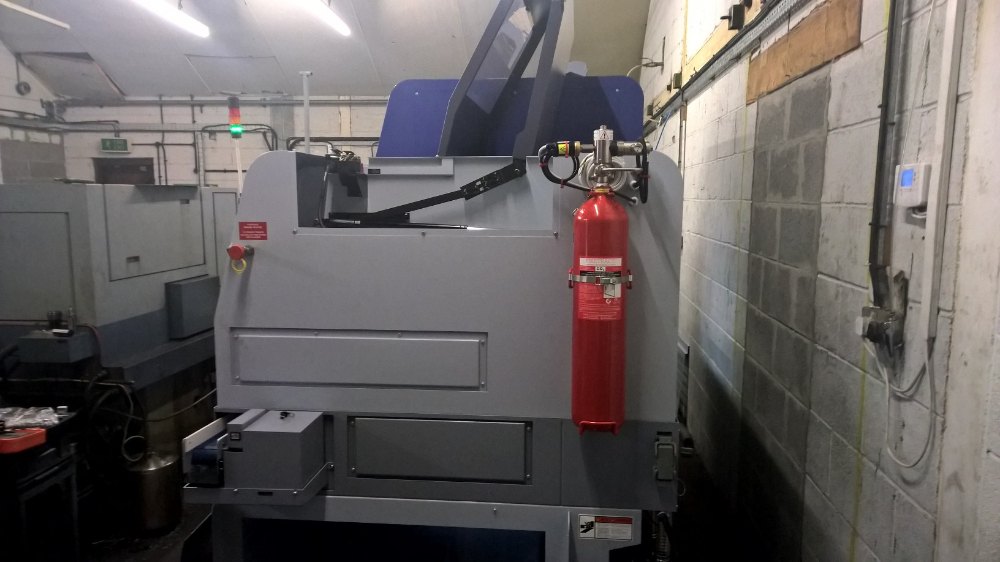

Compact Design Cylinder mounted near the CNC, tube routed internally.
Residue-Free Clean agents leave no residue; safe for electronics & precision parts.
Low Maintenance Simple system, reliable performance.

Applications

CNC machining centers
Milling machines
Turning and lathe machines
Grinding and EDM machines
Injection molding machines
Precision manufacturing equipment

Uses & Benefits

Protects CNC machines from oil, spark, and electrical fires.
Prevents damage to expensive tools and workpieces.
Minimizes production downtime and costly repairs.
Ensures worker safety in manufacturing environments.
Complies with safety standards for industrial fire protection.

Comprehensive Fire Coverage for CNC Machines

This fire suppression system delivers reliable protection across a wide range of CNC and industrial machines, including machining centers, milling, grinding, EDM, and injection molding equipment. Its automatic action detects and manages fires involving oil mists, tool overheating, fine metal dust, dielectric oils, or hydraulic fluids. Designed for localized application, it minimizes damage and downtime while maintaining industrial safety standards.

Innovative Technology and Installation Flexibility

Utilizing ILP technology, the system allows for both direct-tube and indirect-nozzle agent release, ensuring rapid suppression at the site of ignition. Installation is onsite and adaptable to wall or panel mounting, with connectivity via threaded fittings. Its variable cylinder diameters and 230VA input power mean it can fit various machine enclosures and production layouts with ease.

Durable, Efficient, and User-Friendly

Built with high-quality stainless steel and chrome coating, the system is corrosion-resistant and durable. It supports temperatures between 100-120C, features energy efficiency rated at 5 stars, and offers user-friendly mechanical control. The included loud alarm provides immediate fire alerts, enhancing safety for operators and facilities. Its maintenance and operational ease make it a practical choice for ongoing fire protection.

FAQ's of CNC Machine fire suppression system:

Q: How does the CNC Machine Fire Suppression System automatically detect and extinguish fires?

A: The system uses advanced ILP technology with clean agent suppression. It detects heat via dedicated tubing; when exposed to a fire, the tube ruptures or triggers a valve, releasing extinguishing agent directly at the ignition point. This rapid deployment ensures the fire is smothered before it spreads, protecting machinery and workers.

Q: What types of fires can this suppression system handle in industrial settings?

A: It is rated for Class A, B, and C fires, meaning it can handle fires caused by combustibles (like paper or wood), flammable liquids (oils, coolants), and electrical equipment. This versatility makes it suitable for diverse CNC and automated manufacturing environments.

Q: Where is this fire suppression system typically installed?

A: The system is designed for installation directly on CNC machines, machining centers, milling, grinding, EDM, injection molding machines, and within robotic/automated manufacturing cells. It is mounted onsite, either on walls or machine panels, ensuring localised and effective protection.

Q: What is the process for maintaining the CNC Machine Fire Suppression System?

A: Maintenance involves regular inspections of the agent cylinders, tubing, and alarm functionality. The system should be checked for pressure, system integrity, and operational status per manufacturer guidelines at least annually or after any discharge. Professional servicing is recommended to ensure reliability.

Q: What are the main benefits of using an automatic clean agent suppression system over manual extinguishers?

A: Automatic systems provide immediate fire response, minimizing equipment damage and downtime. Clean agents leave little to no residue, ensuring minimal post-fire cleanup and fast resumption of operations. The automated alarm also alerts personnel, increasing overall facility safety.

Q: How does the direct-release differ from the indirect-release system in terms of fire suppression?

A: Direct-release systems discharge the agent through ruptured tubing at the fire location, ideal for pinpoint fire events. Indirect-release uses the tube to trigger a larger agent release through dedicated nozzles, providing higher flow rates (1.0-6.0 kg/s) for broader coverage in larger enclosures.

Q: What is the expected warranty and support for this suppression system?

A: The system comes with a standard 12-month warranty. Support is available through dealers, distributors, manufacturers, and service providers across India, ensuring responsive assistance for installation, maintenance, and any operational issues.
