Fire Trace System

Name: Fire Trace System
Brand: FIRE ENGINEERING TECHNOLOGY
Price: 65500.0 INR
Availability: InStock

Price 65500.0 INR/ Kit

Get a Price/Quote

MOQ : 1 Kit

Fire Trace System Specification

Coverage Area
entire volume Square Meter (m2)

Product Type
Fire Trace System

Warranty
yes

Weight
1/2/4/6/9 Kilograms (kg)

Control Type
Mechanical

Shape
fire cylinder

Frequency
50 Hertz (HZ)

Fire Class
A,B,C

Working Temperature
100-120 Celsius (oC)

Temperature Range
195 Celsius (oC)

Coating Type
crome

Features
Automatic fire suppression

Dimension (L*W*H)
1x1x1 Meter (m)

Operating Pressure
15-18 Bar

Color
Red

Installation Type
customize

Voltage
Volt (v)

Energy Efficiency Rating
5

Connectivity Type
standard

Input Power
Volt (V)

Fire Extinguisher Type
direct low pressure gas suppression

Alarm
yes

Material
Mild Steel/ DOT/ PESO

Technology
DLP and ILP suppression technology

Mounting Type
wall/ floor

Usage
Industrial and commercial

Application
Commercial and Industrial

Max Flow Rate
as per NFPA 2001

Capacity
1-9 Kg

Diameter
4/6 Millimeter (mm)

Pressure
15-18 Bar

Fire Trace System Trade Information

Minimum Order Quantity
1 Kit

Payment Terms
Others

Supply Ability
10 Kits Per Day

Delivery Time
3 Week

Main Domestic Market
All India

About Fire Trace System

Fire Trace System

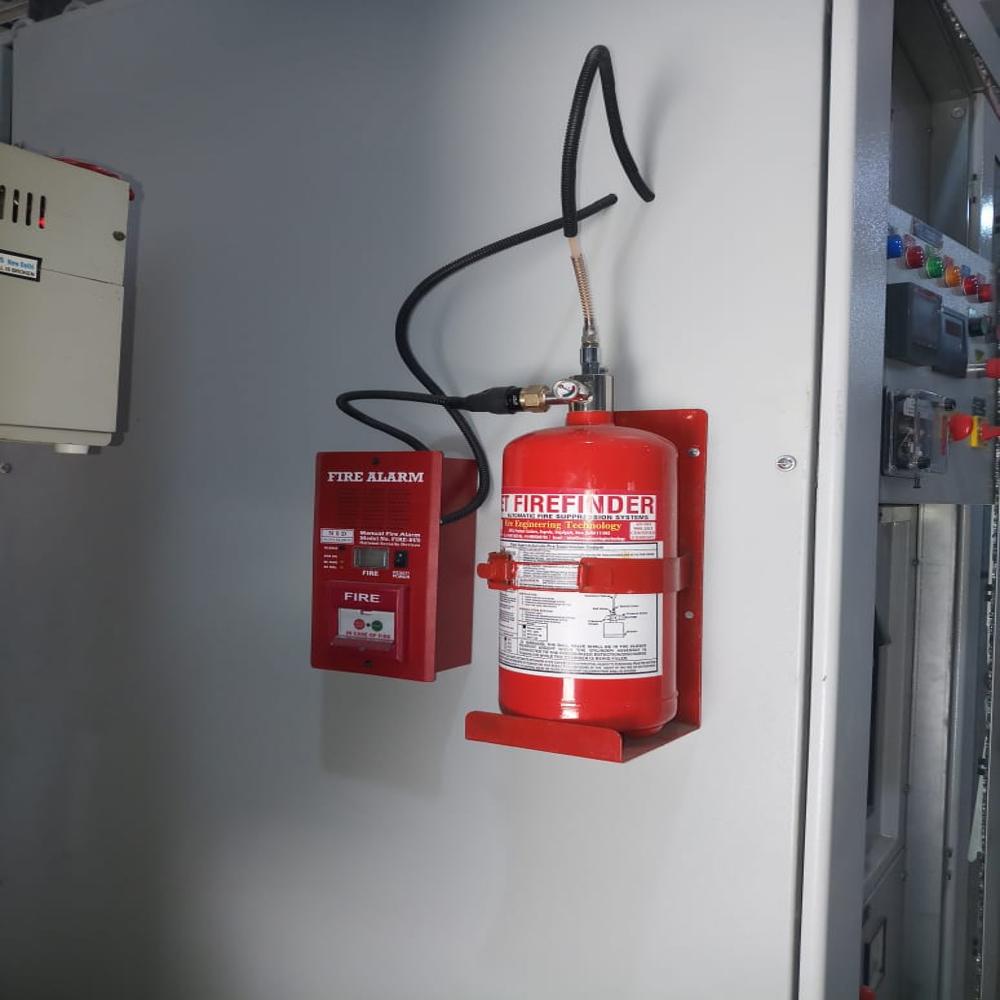

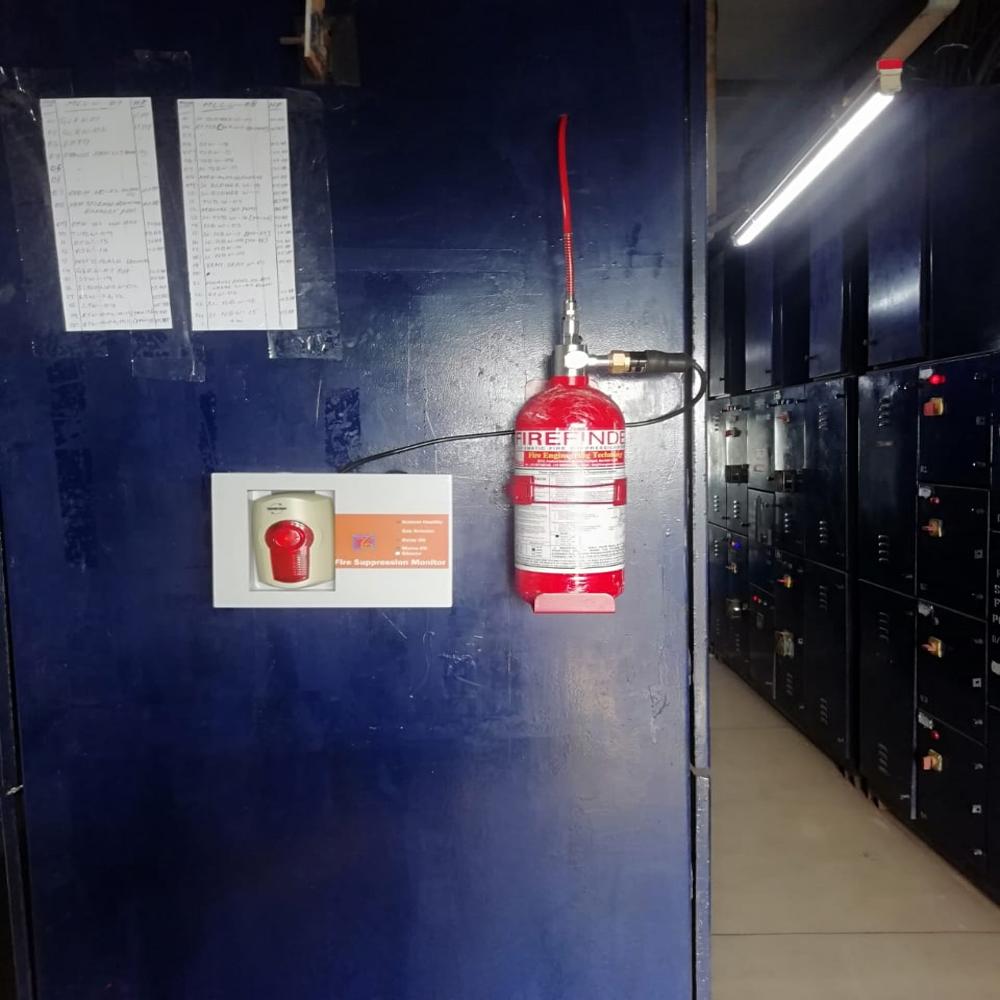

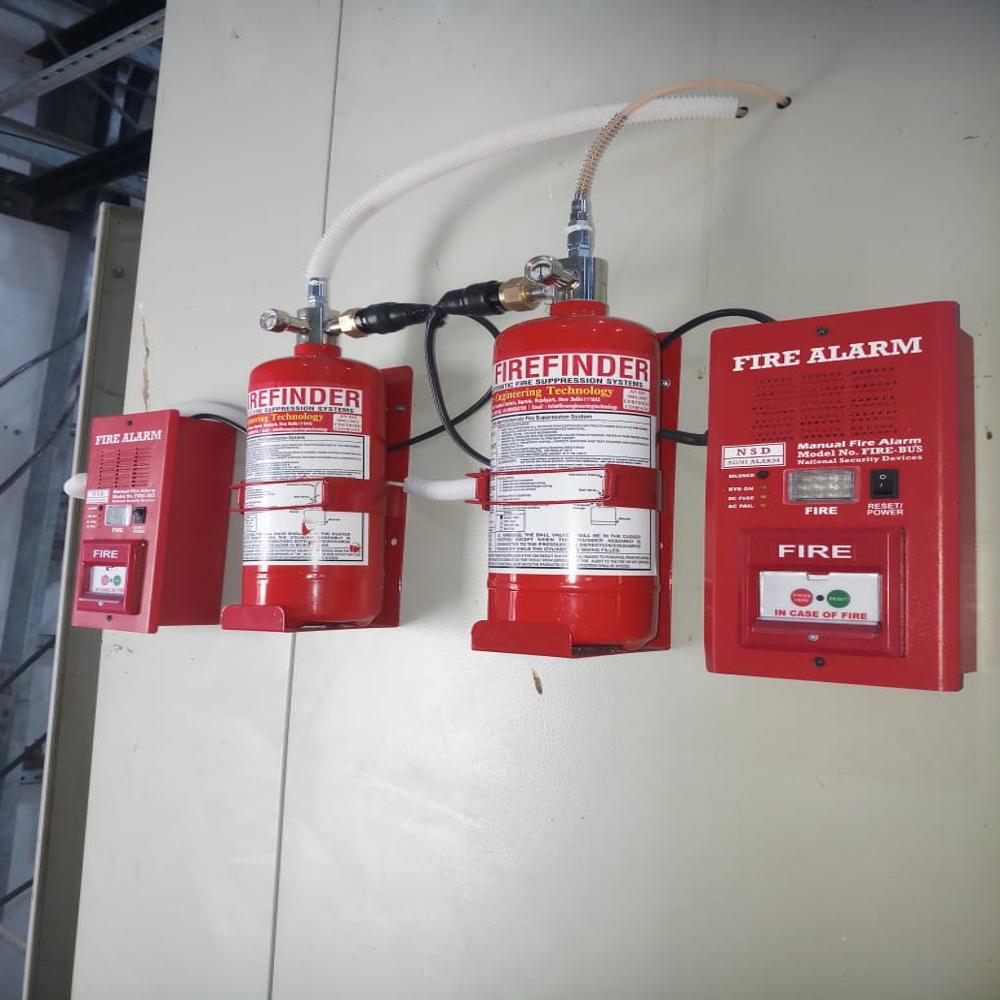

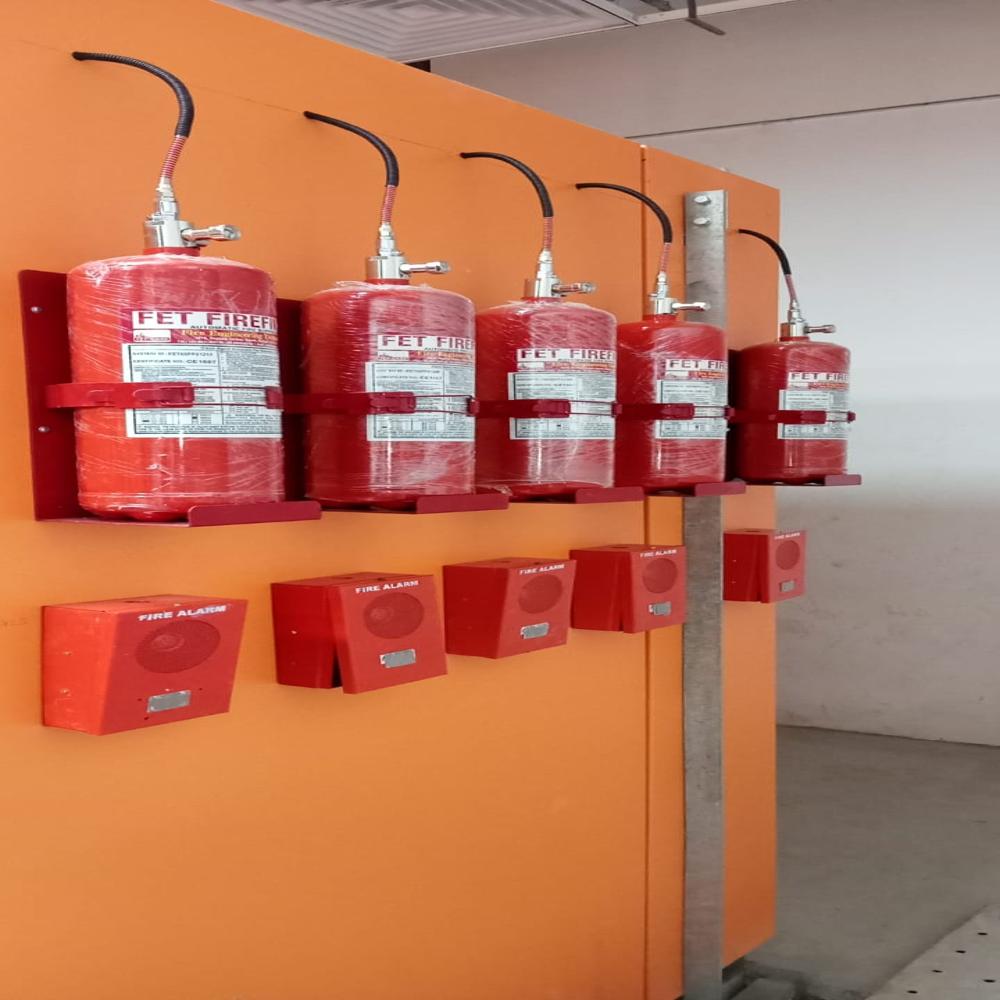

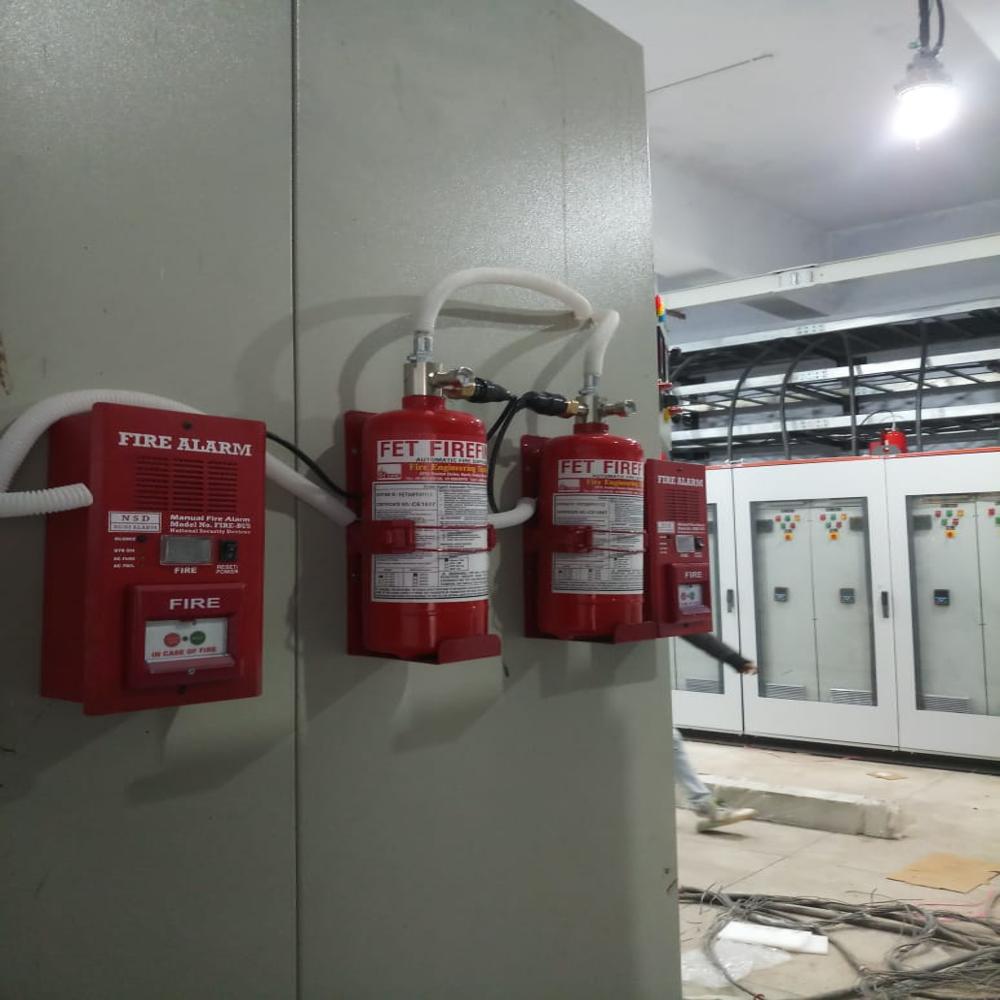

The Fire Trace System, also known as a Firetrace Tube Based Fire Suppression System, is an advanced automatic fire detection and suppression solution designed for instant fire control at the source of ignition. This highly reliable fire trace fire suppression system is ideal for protecting electrical panels, control panels, CNC machines, server racks, UPS systems, battery cabinets, generators, engine compartments, and enclosed machinery, where early fire detection is critical.

The Fire Trace System uses a specially designed heat-sensitive detection tube installed directly inside the protected enclosure. When a fire occurs, the tube ruptures at the hottest point and releases the extinguishing agent directly onto the fire, ensuring ultra-fast point-source fire suppression without the need for electricity, sensors, or control panels.

Key Features & Benefits

Automatic Fire Detection & Suppression in a single system
Tube Based Fire Trace Technology detects fire at the exact source
No External Power Supply Required
Fast Fire Knock-Down within Seconds
Clean Agent / Gas / Powder Options Available
No Residue & Minimal Equipment Damage (clean agent type)
Compact & Space-Saving Design
Low Maintenance & Highly Reliable
Ideal for Unmanned & Enclosed Areas

Fire Trace System Variants

Clean Agent Fire Trace System (FK-5-1-12 / FM-200)
CO Based Fire Trace System
Dry Chemical / Powder Fire Trace System

Applications (High Demand Across India)

Electrical Panel Fire Trace System
LT / HT / MCC / PCC / PLC Panels
Server Rack & Data Center Fire Suppression
UPS & Battery Room Fire Protection
CNC & Industrial Machine Fire Suppression
Generator & Engine Compartment Fire Protection
Telecom & Network Cabinets
Mining, Construction & Heavy Vehicles

The Fire Trace fire suppression system is widely used as a micro-environment fire suppression solution, offering localized protection with minimal extinguishing agent usage. It is a cost-effective alternative to conventional gas flooding and modular fire suppression systems, especially where early detection, fast response, and equipment safety are critical.

Search Keywords

Fire Trace system, fire trace fire suppression system, Firetrace tube based fire suppression system India, automatic fire trace system, tube based fire suppression system, electrical panel fire trace system, micro environment fire suppression system, fire trace system for CNC machine, server rack fire trace system, generator fire trace suppression, engine compartment fire trace system, automatic fire extinguisher tube system, fire suppression without power supply.

Comprehensive Fire Protection

Engineered for industrial and commercial applications, the Fire Trace System delivers automatic fire suppression for entire room volumes. Its advanced DLP and ILP suppression technologies ensure rapid and effective response across multiple fire classes, safeguarding assets and lives with minimal human intervention.

Robust Design & Flexible Installation

Constructed from durable mild steel with chrome coating, this system offers reliability even under harsh conditions. Customizable installation options allow it to be wall- or floor-mounted, adapting seamlessly to diverse structural layouts and operational needs.

Industry-Leading Energy Efficiency

Rated at an impressive energy efficiency level 5, this fire suppression system is not only powerful but also cost-effective in long-term operation. It aligns with environmentally conscious operational practices, reducing energy waste without compromising performance.

FAQ's of Fire Trace System:

Q: How does the Fire Trace System automatically suppress fires in industrial and commercial settings?

A: The Fire Trace System employs DLP and ILP gas suppression technology to automatically detect and extinguish fires across classes A, B, and C. Upon activation, the system releases suppression gas at 15-18 Bar, directly targeting the fire source to control and eliminate it rapidly.

Q: What is the installation process for the Fire Trace System?

A: Installation is fully customizable-our team assesses your commercial or industrial space to design the optimal configuration. The system can be mounted on walls or floors and is scaled to cover the entire volume specified. All installations adhere to NFPA 2001 and local regulatory standards.

Q: When is routine maintenance required for this fire suppression system?

A: Routine maintenance should follow manufacturer guidelines or local fire safety standards, typically involving periodic inspections to check pressure levels, alarm functionality, and physical condition. Regular checks ensure system integrity and sustained operational readiness.

Q: Where can this Fire Trace System be used most effectively?

A: Ideal for factories, data centers, warehouses, and commercial complexes, the system serves any space where comprehensive, responsive fire protection is essential. It is available for deployment throughout India via authorized dealers and service providers.

Q: What are the primary benefits of choosing this fire suppression solution?

A: Key advantages include fully automatic fire control, high energy efficiency, an extended operating temperature range, reliable performance across multiple fire classes, and a warranty-backed investment-ensuring safety and peace of mind for businesses and property owners.

Q: How is the system's capacity and coverage determined?

A: Capacity options range from 1 to 9 kg, supporting various room sizes and risks. Our team calculates the required capacity based on your location's dimensions, coverage volume, and fire safety needs to ensure full protection.

Q: What materials and coatings are used to ensure the durability of the system?

A: The Fire Trace System utilizes durable mild steel, DOT, or PESO-approved materials and is finished with a chrome coating to withstand industrial conditions and provide long-lasting protection against corrosion and wear.
