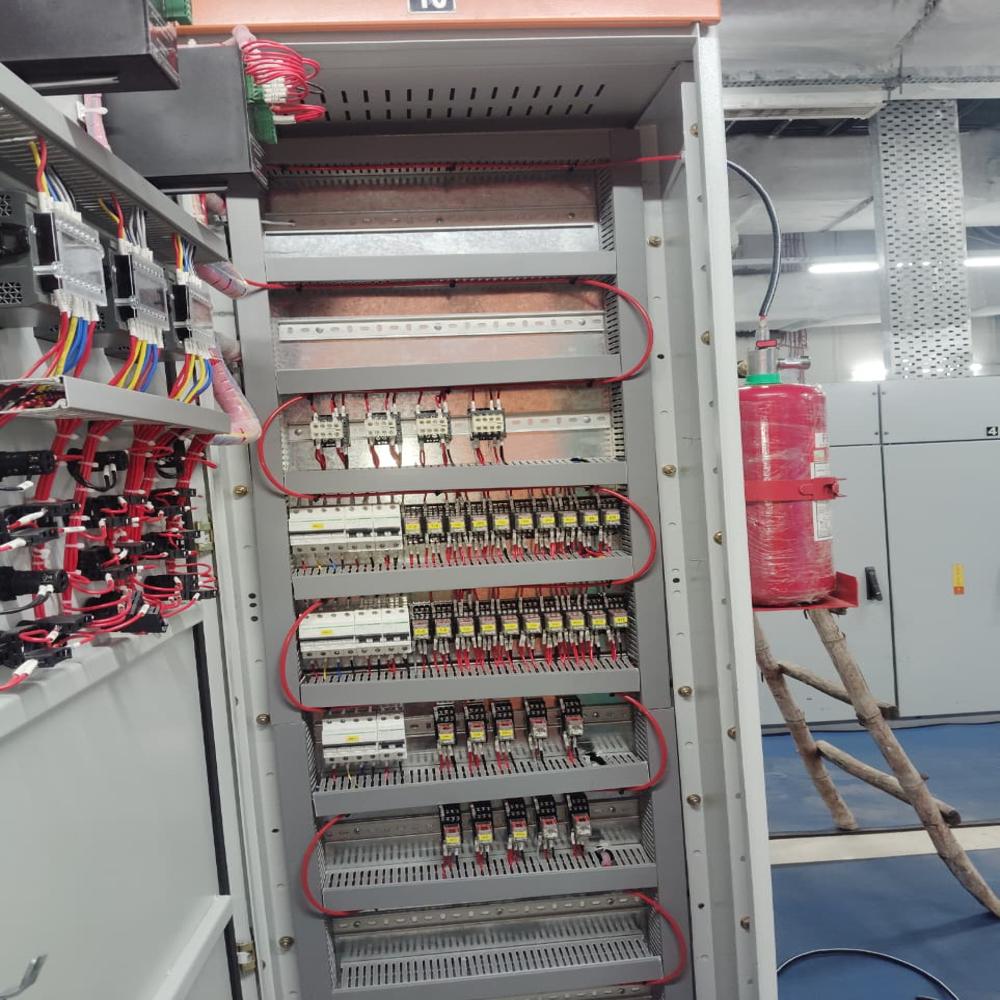

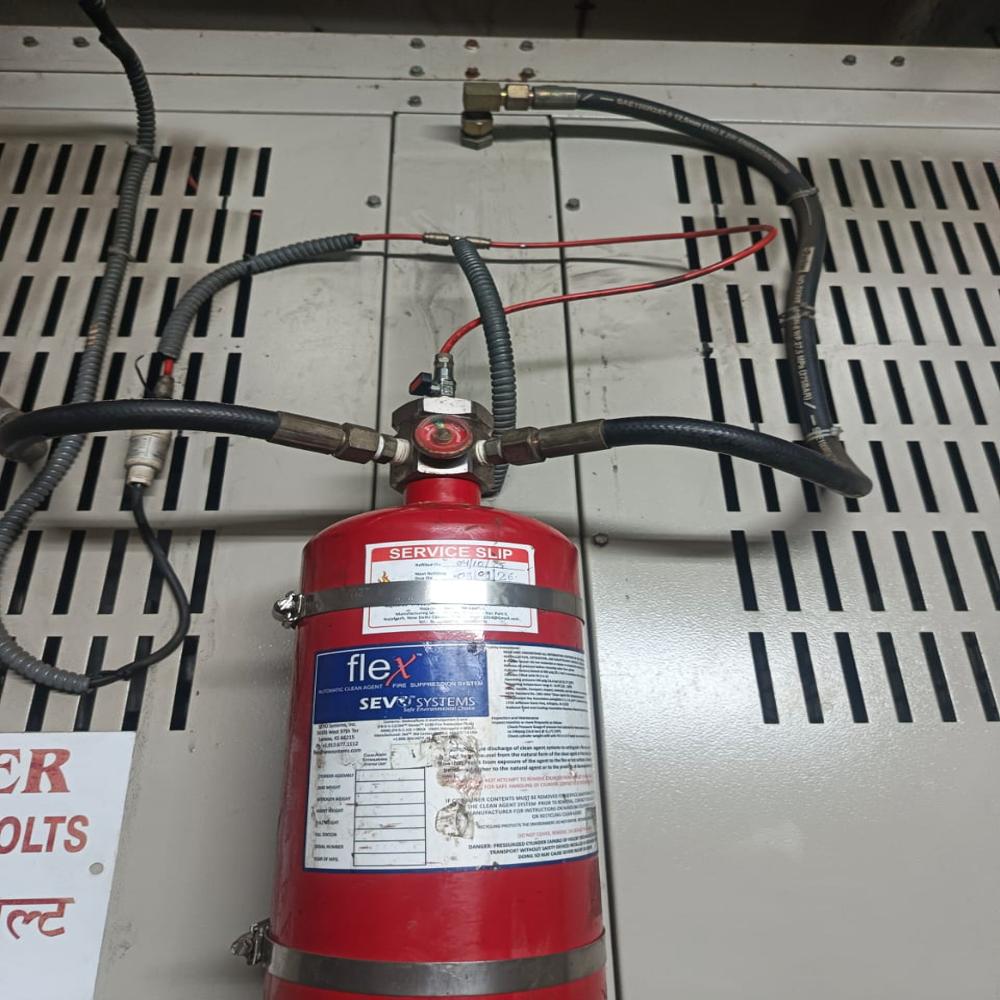

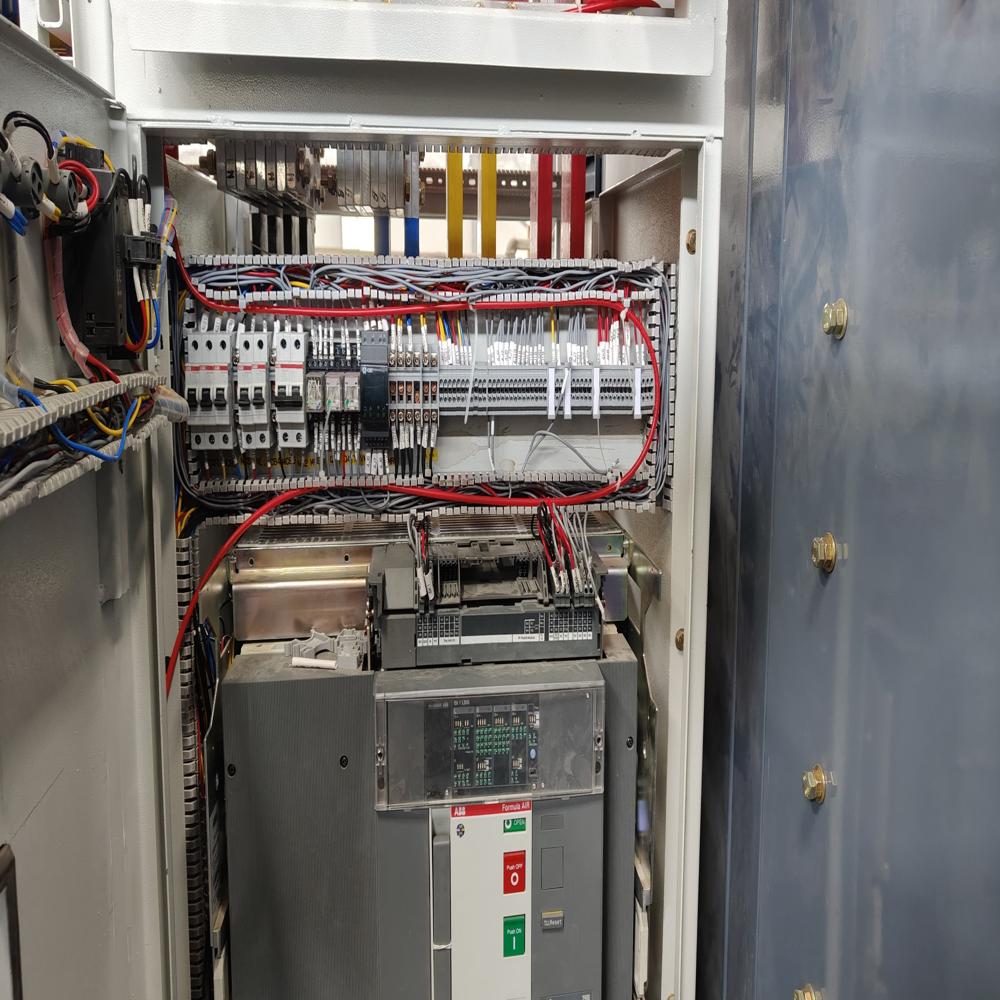

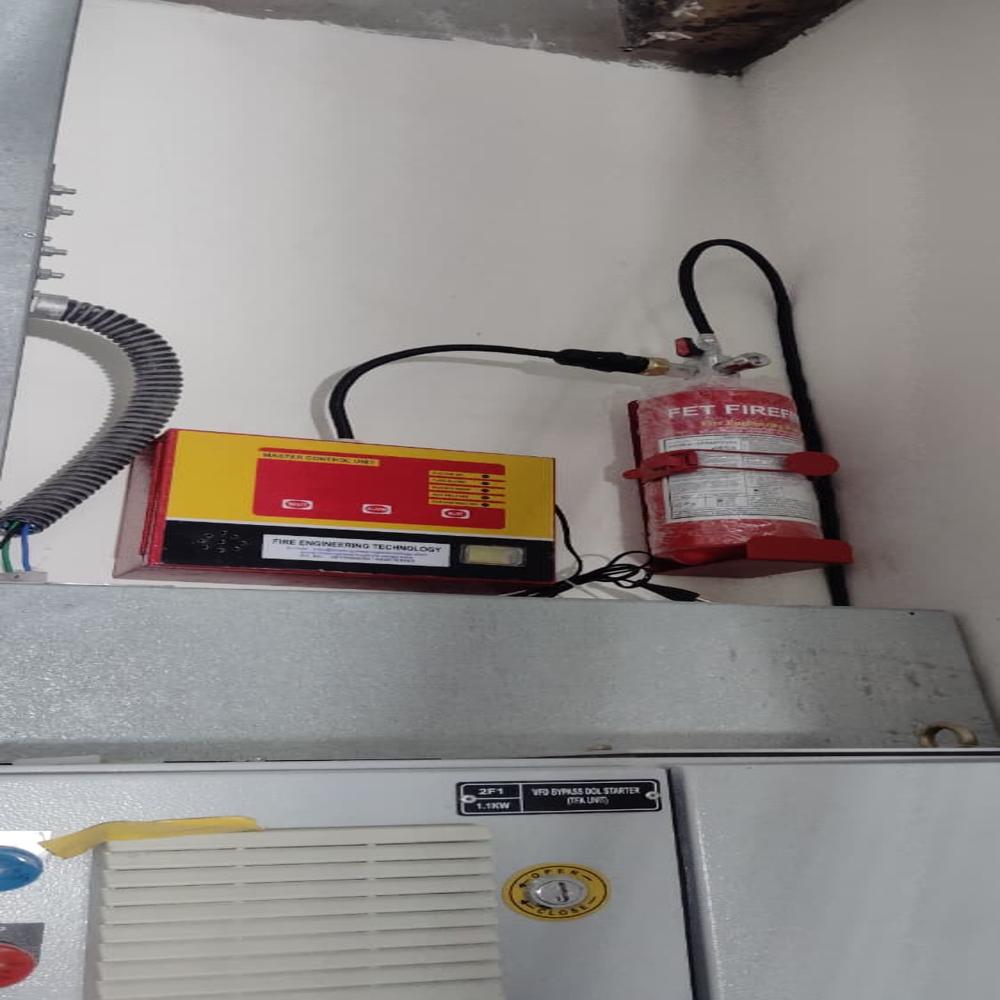

FM 200 Fire Trace Suppression System

FM200 Fire Trace Suppression System is an automatic tube based fire detection and suppression system designed for rapid protection of electrical panels, electrical enclosures, control cabinets, UPS cabinets, switchgear, server cabinets, CNC machines, generators, compressors and other enclosed high risk equipment. The system combines FM200 HFC227ea clean agent with a heat sensitive detection tube for automatic equipment level fire protection.

The system continuously monitors the protected enclosure through a flexible fire detection tube installed near potential fire sources. When the tube reaches its specified activation temperature, the suppression arrangement operates automatically. Depending on the selected configuration, the system can be designed as a Direct Release or Indirect Release FM200 Fire Trace System.

Direct Release System: The heat sensitive tube is installed near potential ignition sources and, according to the selected system design, provides the discharge path for the FM200 extinguishing agent at the point of heat activation.

Indirect Release System: The detection tube senses excessive heat and activates the release mechanism, while the FM200 HFC227ea clean agent is discharged through separate fire suppression nozzles installed inside the protected enclosure.

Application Areas: MCC Panel, PCC Panel, HT Panel, LT Panel, MV Panel, VCB Panel, PLC Cabinet, APFC Panel, DB Panel, Control Panel, Relay Cabinet, Switchgear Cabinet, Electrical Enclosure, Automation Cabinet, UPS Cabinet, Battery Cabinet, Inverter Cabinet, Telecom Cabinet, Server Cabinet, Network Cabinet, CNC Machine, EDM Machine, Generator, DG Set, Compressor, Hydraulic Unit, Industrial Machinery and Process Equipment.

Equipment Protection: Electrical Panels, Switchgear, Control Electronics, PLC Systems, UPS Systems, Power Electronics, Server Equipment, Telecom Equipment, Industrial Machines, Generator Equipment and other enclosed electrical or electronic assets as applicable to the system design.

Main Components: FM200 Fire Suppression Cylinder, HFC227ea Clean Agent, Heat Detection Tube, Automatic Release Valve, Discharge Nozzle, Pressure Gauge, Pressure Switch where applicable, Manual Release Arrangement, Tube Fittings, Piping, Mounting Brackets and Accessories.

Key Features: Automatic Fire Detection, FM200 Gas Fire Suppression, Fire Trace Tube Detection, Fast Heat Response, Equipment Level Fire Protection, Clean Agent Suppression, Minimal Residue, Compact Design, Direct and Indirect Release Options, Automatic Activation, Manual Release Option and Retrofit Installation Capability.

Working Principle: The fire detection tube is routed through the protected equipment near identified fire risk points. Under normal conditions, the system remains ready for operation. When abnormal heat activates the tube, the release mechanism operates and FM200 is discharged into the protected enclosure through the direct tube or dedicated nozzle arrangement.

Suitable Applications: Electrical Panel Fire Suppression, Electrical Cabinet Fire Protection, UPS Cabinet Fire Suppression, Server Cabinet Fire Protection, Telecom Cabinet Fire Suppression, Switchgear Fire Suppression, PLC Cabinet Fire Protection, CNC Machine Fire Suppression, Generator Fire Protection, Compressor Fire Suppression and Automatic Equipment Fire Protection.

Suitable Industries: Power Plants, Electrical Substations, Manufacturing Industries, Steel Plants, Cement Plants, Automobile Industries, Pharmaceutical Industries, Chemical Industries, Oil and Gas Facilities, Data Centers, Telecom Facilities, Railway Projects, Renewable Energy Projects and Industrial Automation Facilities.

The required FM200 agent quantity, cylinder capacity, detection tube length, activation temperature, nozzle quantity, nozzle location and discharge configuration should be selected according to the protected enclosure dimensions, internal equipment arrangement, fire hazard, ventilation and manufacturer design requirements.

For engineered clean agent installations, NFPA 2001 may be considered where applicable, together with project specifications, manufacturer requirements and local fire safety requirements.

Fire Engineering Technology provides FM200 Fire Trace Suppression Systems, FM200 Tube Based Fire Suppression Systems, HFC227ea Clean Agent Systems, Automatic Detection Cum Suppression Systems, Electrical Panel Fire Suppression Systems and Equipment Level Fire Protection Systems with design, engineering, supply, installation, testing, commissioning, maintenance, AMC and refilling services across India.
