FE36 Fire Suppression System

Name: FE36 Fire Suppression System
Brand: FIRE ENGINEERING TECHNOLOGY
Price: 60000.0 INR
Availability: InStock

Price 60000.0 INR/ Set

Get a Price/Quote

MOQ : 1 Piece

FE36 Fire Suppression System Specification

Usage
Industrial and comercial

Frequency
50 Hertz (HZ)

Weight
20 Kilograms (kg)

Features
automatic

Mounting Type
wall

Fire Class
A,B,C

Alarm
yes

Fire Extinguisher Type
dlp suppression

Input Power
230 Volt-Ampere (VA)

Shape
fire cylinder

Working Temperature
100-120 Celsius (oC)

Voltage
230 Volt (v)

Operating Pressure
15-18 Bar

Technology
direct low pressure

Connectivity Type
standard

Installation Type
standard

Control Type
mechanical

Temperature Range
100-120 Celsius (oC)

Energy Efficiency Rating
5 star

Coating Type
crome

Coverage Area
entire volume Square Meter (m2)

Color
Red

Product Type
Diffusible FE36 Fire Suppression System

Material
Carbon Steel

Dimension (L*W*H)
1x1x1 Meter (m)

Warranty
12 month

Application
FIRE FIGHTING - FE-36 fire suppression system

Max Flow Rate
as per NFPA

Capacity
1-9 Kg

Diameter
any Meter (m)

Pressure
15-18 Bar

FE36 Fire Suppression System Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
500 Pieces Per Month

Delivery Time
4 Week

Packaging Details
Standard

Main Domestic Market
All India

Certifications
UL

About FE36 Fire Suppression System

FE-36 Fire Suppression System Clean Agent Automatic Fire Protection

The FE-36 Fire Suppression System is an advanced clean agent fire protection solution designed to provide fast, residue-free fire suppression for electrical, electronic, and high-value assets. FE-36 (HFC-236fa) extinguishes fire by absorbing heat and interrupting the combustion process without damaging equipment.

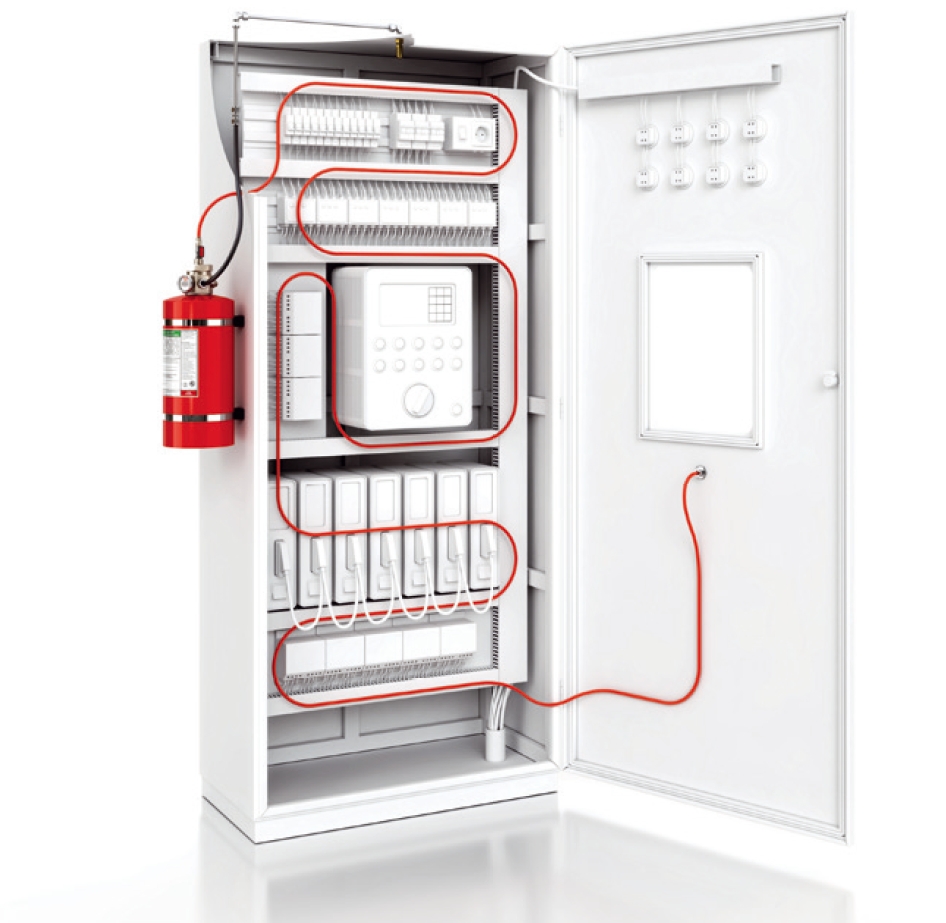

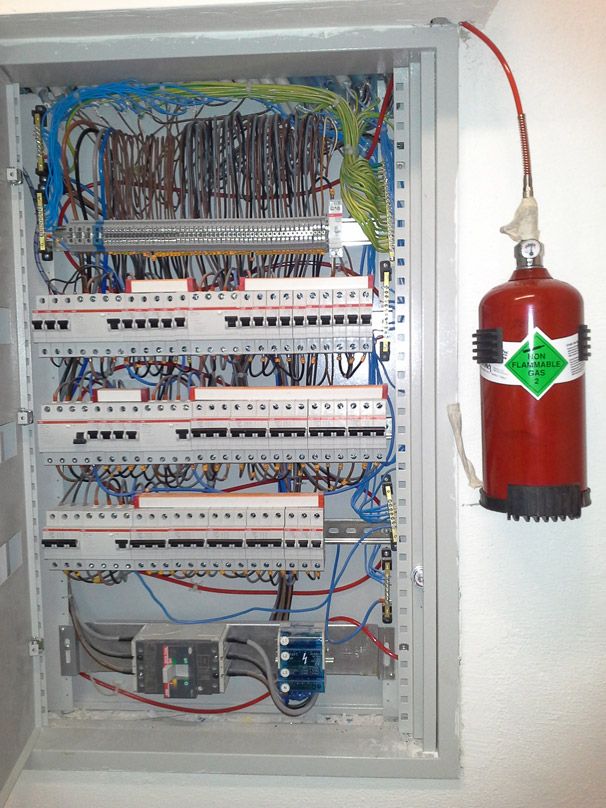

This system is ideal for protecting electrical panels, server rooms, data centers, UPS rooms, control rooms, CNC machines, telecom rooms, and laboratories. The FE-36 agent is non-conductive, non-corrosive, and residue-free, ensuring minimal downtime and quick restoration after discharge.

The FE-36 fire suppression system can be designed as a total flooding system or localized / tube-based system, activated automatically through smoke detectors, heat detectors, flame detectors, or fire detection tube technology. It provides early fire suppression and prevents fire spread at the incipient stage.

Key Features

Automatic clean agent fire suppression
Uses FE-36 (HFC-236fa) clean agent
Safe for electrical & electronic equipment
No residue, no corrosion, no secondary damage
Fast response and high extinguishing efficiency
Low maintenance and long service life

Applications

Electrical panels & switchgear
Server rooms & data centers
UPS & battery rooms
Control rooms & telecom facilities
CNC machines & industrial enclosures
Laboratories & clean rooms

Compliance

Designed as per NFPA 2001 / ISO 14520
Environment-friendly clean agent fire protection

Keywords (TradeIndia / SEO)

FE-36 fire suppression system, FE-36 clean agent fire protection, HFC-236fa fire suppression system, FE-36 gas flooding system, electrical panel FE-36 fire suppression, automatic clean agent fire suppression system.

Advanced Fire Protection Technology

The FE36 Fire Suppression System leverages direct low pressure technology to provide swift and effective automatic fire extinguishing for industrial and commercial environments. Its intelligent sensing and mechanical control combine to react instantly when fire is detected, ensuring both personnel safety and property protection across multiple fire classes.

Installation and Versatility

Engineered for wall-mounted installation, the FE36 system integrates seamlessly with existing fire safety infrastructure. With dimensions of 1x1x1 meters and a broad range of capacities, it can be tailored to suit various industrial and commercial applications. Standard connectivity and installation types make deployment straightforward for dealers and installers.

Energy Efficiency and Durability

Boasting a 5-star energy efficiency rating, the FE36 operates at 230 volt-ampere, ensuring minimal power consumption. Its carbon steel construction with chrome coating offers superior resilience against environmental wear, supporting reliable performance and a 12-month warranty for peace of mind.

FAQ's of FE36 Fire Suppression System:

Q: How does the FE36 Fire Suppression System operate during a fire emergency?

A: The FE36 system automatically detects fire within its coverage area, activating the suppression mechanism through mechanical control. It releases its extinguishing agent at a controlled pressure of 15-18 bar to effectively suppress fires in classes A, B, or C, accompanied by an audible alarm.

Q: What are the installation requirements for the FE36 Fire Suppression System?

A: Designed for wall mounting, the FE36 system requires a stable surface with access to a standard 230 VA power supply and should be installed according to NFPA guidelines. Installation must be carried out by authorized professionals to ensure optimal coverage and function.

Q: When should the FE36 Fire Suppression System be serviced or inspected?

A: Although the system includes a 12-month warranty, routine inspections and servicing are recommended every six months or after any discharge event to maintain peak performance and adherence to manufacturer and safety standards.

Q: Where can the FE36 Fire Suppression System be used most effectively?

A: This system is ideal for industrial and commercial premises such as factories, warehouses, data centers, and retail environments throughout India, where robust and rapid fire protection is crucial.

Q: What benefits does the FE36 Fire Suppression System offer over traditional extinguishers?

A: Unlike manual extinguishers, the FE36 system activates automatically, providing rapid fire suppression without human intervention. Its broad coverage, compliance with NFPA standards, and energy efficiency help minimize potential fire damage and downtime.

Q: How is the capacity of the FE36 system determined for a specific application?

A: Capacity selection is based on the size of the protected area and the potential fire load. The system offers a range between 1 and 9 kg per cylinder, ensuring it can be customized for entire volume protection in various settings.
